Custom application: WingMagic CAD

The WingMagic CAD application is a paraglider wing prototyping and design software.

It features the airfoil, plant surface, curvature and lines design with automatic calculation of the final wing, with a OpenGL 3D preview of the project. The 3D model can be exported in the DXF format for further CAD design with 3rd-parties software and the POVRay format for raytracing.

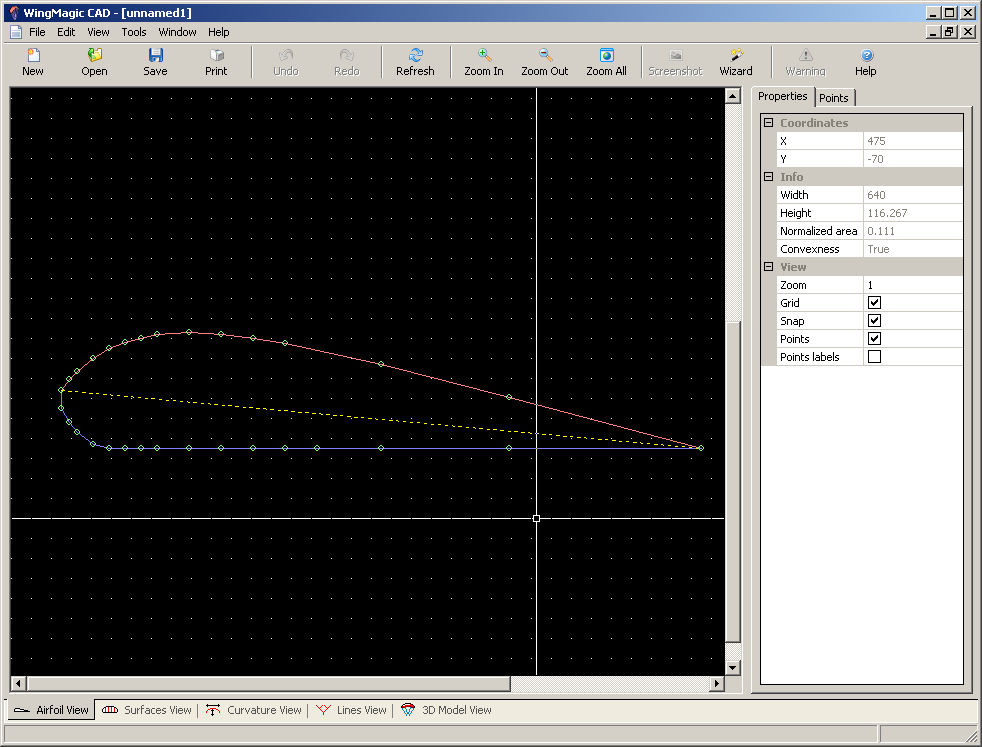

In the following screenshot, the WingMagic CAD airfoil design page is featured.

Click to enlarge picture

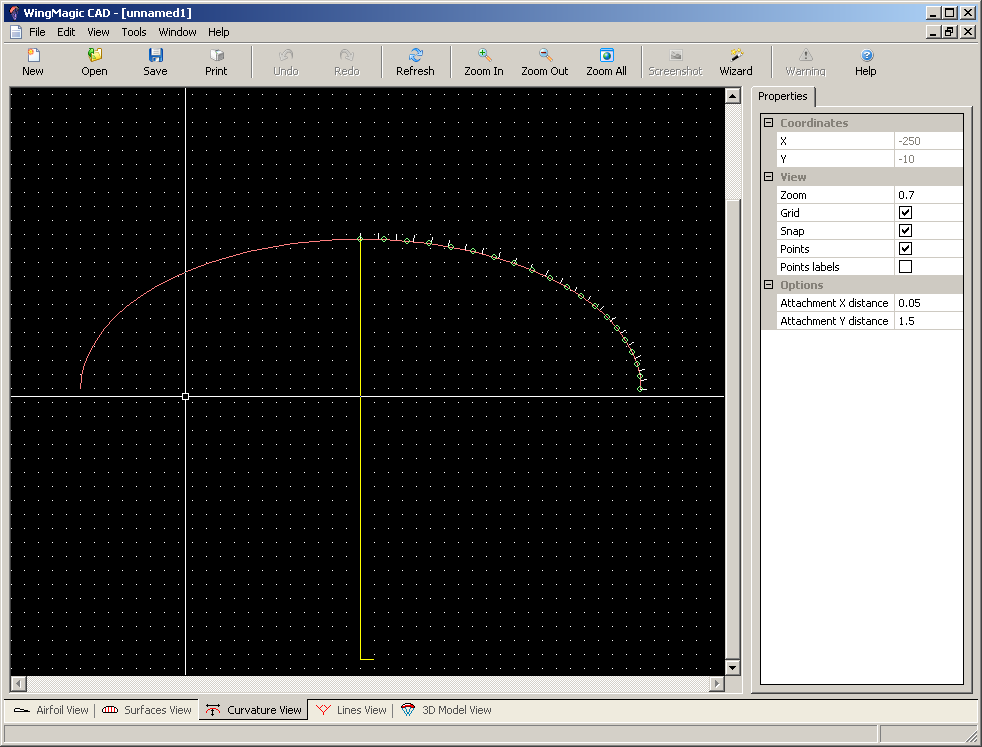

In the following screenshot, the WingMagic CAD curvature design page is featured.

Click to enlarge picture

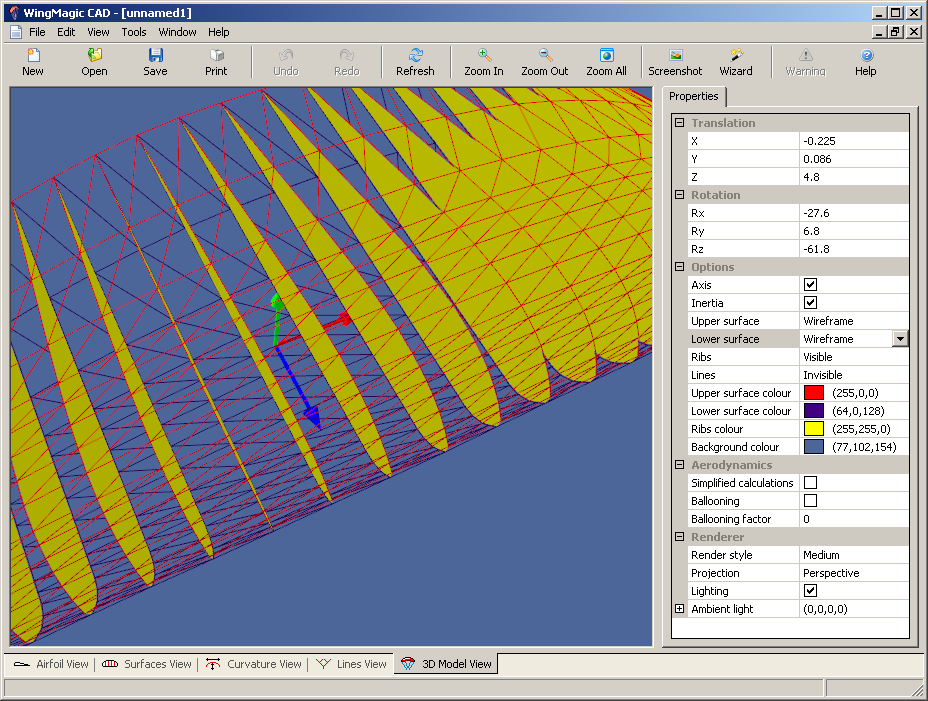

In the following screenshot, a detail of the wing in wireframe 3D mode is shown.

Click to enlarge picture

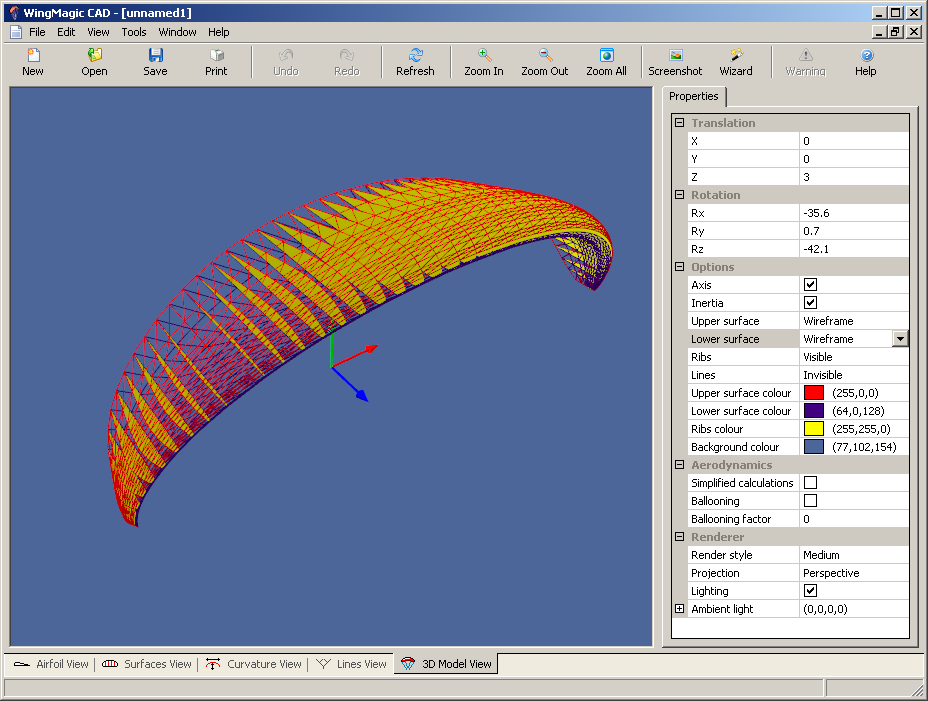

In the following screenshot, the full wing prototype in 3D mode is shown.

Click to enlarge picture

The next video shows a sample rendering of a wing.
