Custom application: V-FARM console

Xen HypervisorThe V-FARM console application was developed for Heliman srl.

It features a GUI interface to the proprietary client/server administration protocol, developed by Roxantis, for the Heliman's V-FARM® virtualization infrastructure, based on the Xen™ hypervisor.

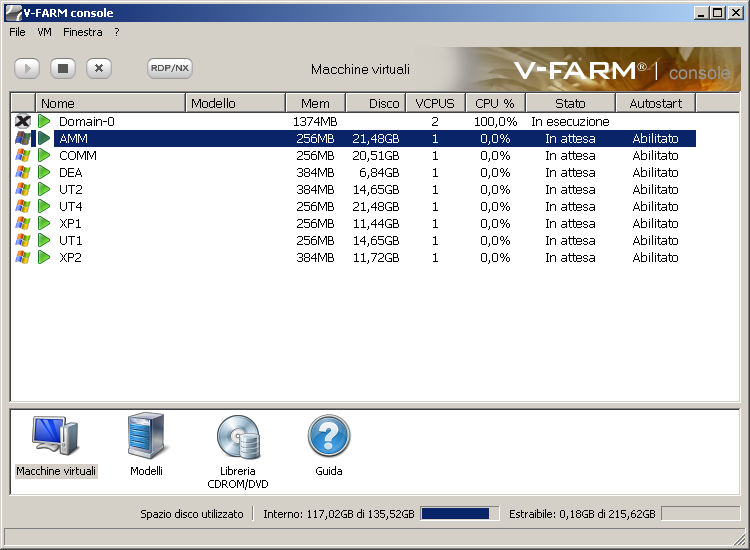

In the following screenshot, V-FARM console is connected to a virtualized platform composed by 8 Windows XP Professional virtual machines. Four main pages are available: virtual machines administration, templates creation/restore, CDROM/DVD ISO images library, and the help.

vfarmconsole1
Click to enlarge picture

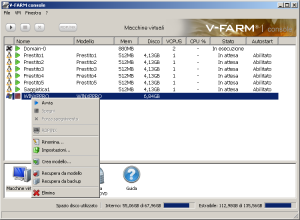

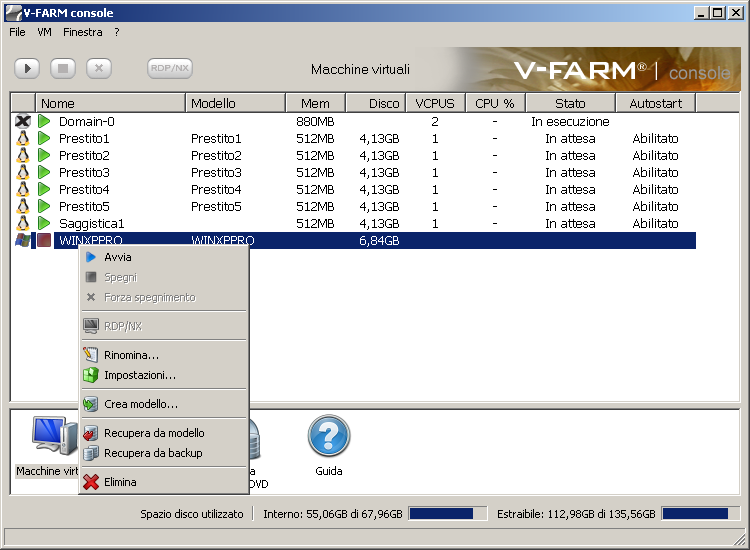

In the following screenshot, the context menu is shown: from this menu the management of every virtual machine is possible. In particular, the restore from template and backup, video connection and settings features of the virtual machine are available.

vfarmconsole2
Click to enlarge picture

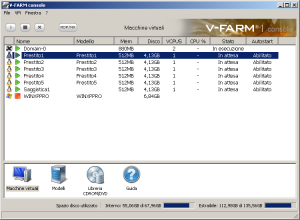

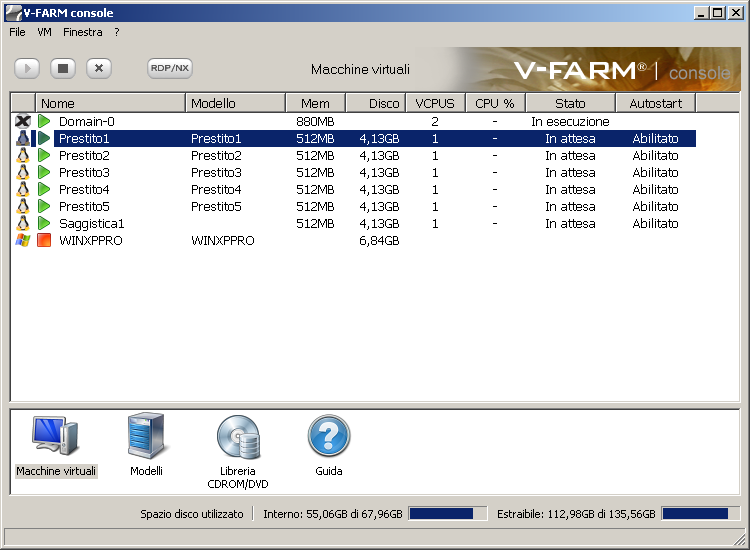

In the following screenshot, V-FARM console is connected to a virtualized platform composed by 6 Ubuntu Linux and one Windows XP Professional virtual machines.

vfarmconsole3
Click to enlarge picture

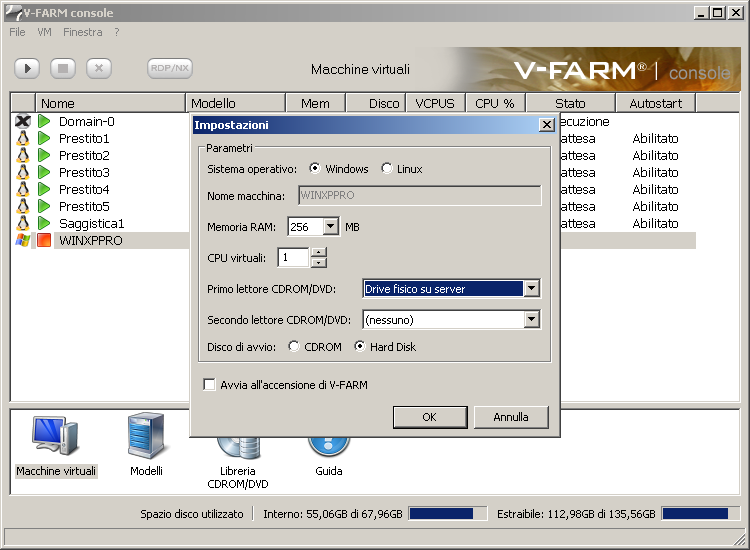

In the following screenshot, the Settings dialog of the single virtual machines is shown. From this window is possible to modify the allocated RAM memory, the assigned virtual CPUs, the type of virtual machine (Windows or Linux) and the virtual CDROM/DVD drives.

vfarmconsole4
Click to enlarge picture

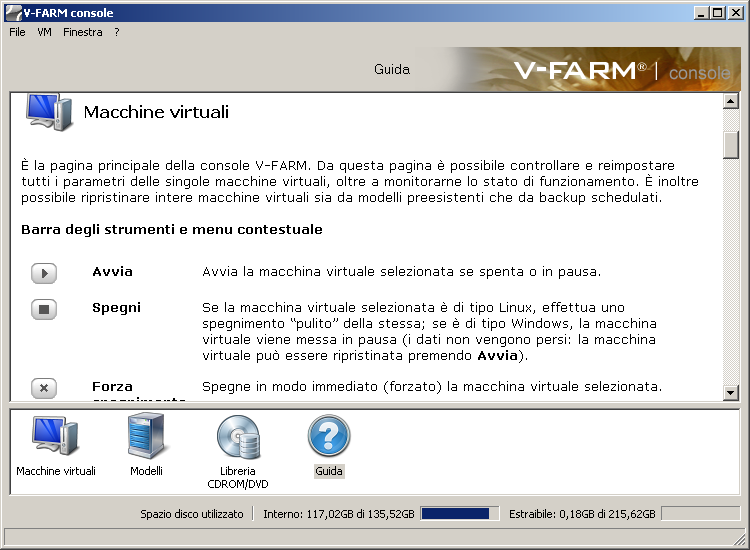

In the following screenshot, a part of the integrated help is featured.

vfarmconsole5
Click to enlarge picture
